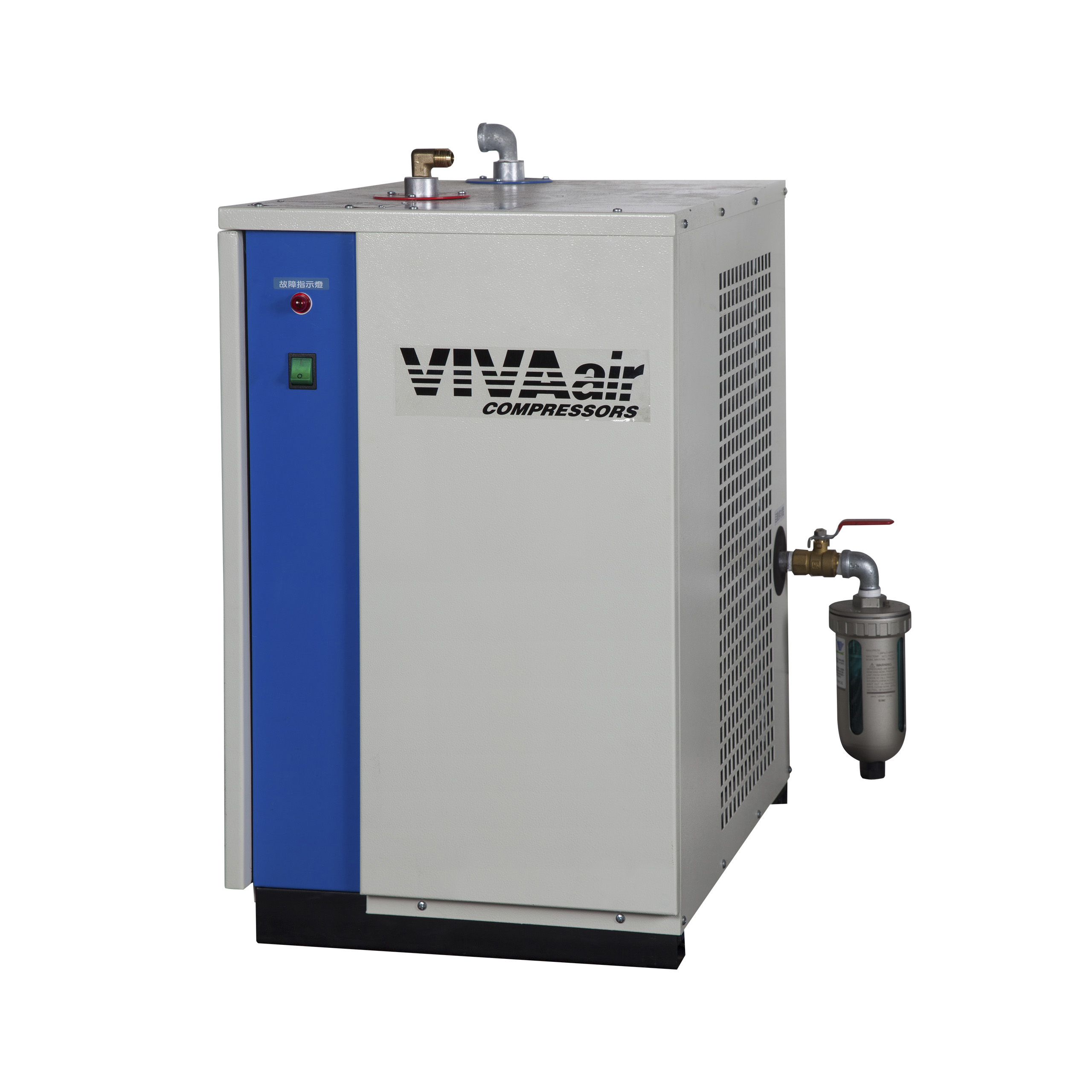

Air Dryer

The product is designed for pursuit a perfect quality air when users apply in special circumstances. Connecting to the product, spray paint operations, laboratories and certain printing and pneumatic tool users can get a perfect performance. Customers could also select the right systems by combing certain compressors and auxiliary equipment. The optional multiple control model is advanced option for specific need. The product can also supply clean air free of moisture and oil when combining an oil-free compressor.
型號 處理空氣量 出入口管 呎吋(cm) 重量 消費電量 電源
Nm³/min SCFM 管徑 長*寬*高 (kg) (kw) 60Hz / V
MT-5AC 0.8 28 G½" 55*38*65 56 0.6 220V / IPh
MT-10AC 1.35 47 G1" 73*49*72 68 0.7 220V / IPh
MT-20AC 2.6 91 G1¼" 82*49*75 90 1.0 220V / IPh
MT-30AC 3.6 127 G1½" 107*60*90 140 1.3 220V / IPh
MT-50AC 6.9 243 G2" 107*60*90 150 1.8 220V / IPh
