Engine Type Air compressor

Engine Type Air Compressor drives with engine and can be used in an environment without electricity. The type works with petroleum or diesel. It is ideal for a wide range of industrial applications and profession purposes, e.g. the applications in agriculture. The design is mobile, and can be worked for remote area application.

MT-21G / 23G / 31D / 51WD / 275D / 310D HMT-23WG / 31D

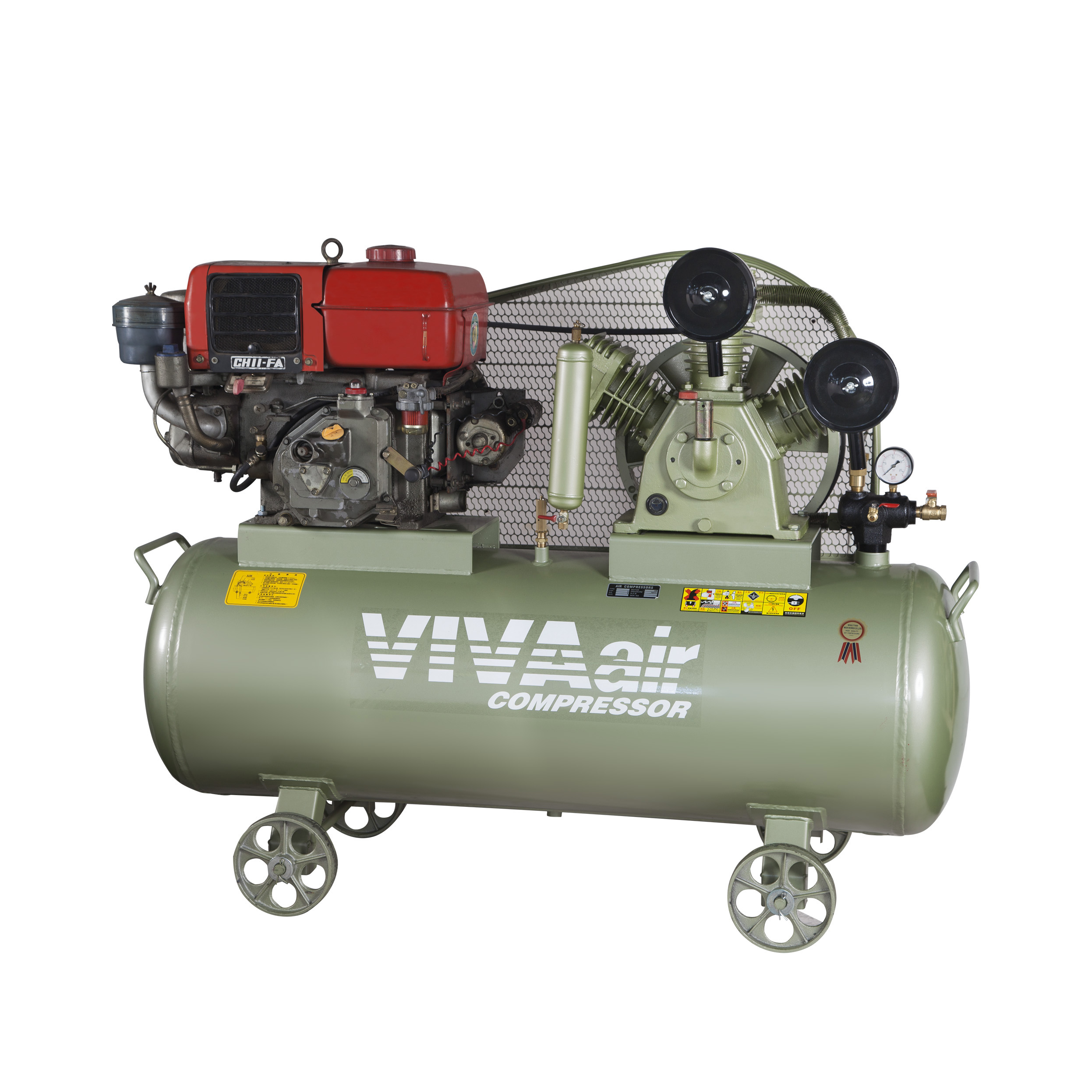

HMT-51WD / 275D / 310D / 51HD　　　　

Ideal for using in environment without electricify.
Working with petroleum or diesel.
Suifable for all applications in different industries.
Ideal for professional purposes.

型號	馬力	氣缸數	使用壓力		最高壓力		空壓機轉數	排氣量		氣桶容量		呎吋(cm)	重量
MODEL	HP	Cylinder	Kg/cm²	psi	Kg/cm²	psi	R.P.M	ℓ/min	CFM	ℓ	Gal.	L x W x H	kg
MT-21G	4	2	8	115	10	145	900	165	5.8	40	10.6	884370	57
MT-23G	6	2	8	115	10	145	900	300	10.6	95	25.1	1174985	85
MT-31D	6	2	8	115	10	145	770	464	16.4	110	29.1	1355096	190
MT-51WD	10.5	3	8	115	10	145	850	769	27.2	155	41.0	14665112	275
MT-275D	13	2	8	115	10	145	950	1045	36.9	245	64.7	16570115	345
MT-310D	18	3	8	115	10	145	900	1484	52.4	300	79.3	19076121	420
HMT-23WG	6	2	12	175	16	230	800	255	9.0	95	25.1	1174985	90
HMT-31D	6	2	12	175	16	230	950	303	10.7	110	29.1	1355096	190
HMT-51WD	10.5	3	12	175	16	230	950	573	20.2	155	41.0	14665112	275
HMT-275D	13	2	12	175	16	230	750	825	29.1	245	64.7	16570115	345
HMT-310D	18	3	12	175	16	230	990	1088	38.4	300	79.3	19076121	420
HMT-51HD	10.5	2	16	230	20	290	700	573	20.2	245	64.7	14665112	305

Remarks：

D for Diesel (柴油)
G for Gasoline (汽油)
