直流電用空壓機

DC Type Air compressor-圖片

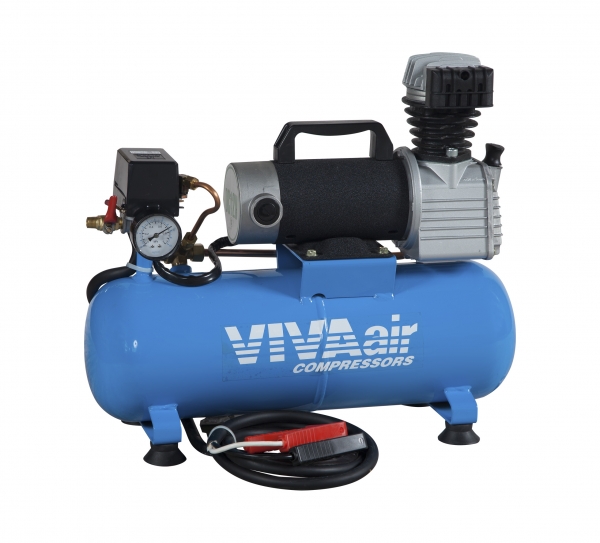

DC Type Air compressor
DC type Air Compressor has a small-size design that is easy to carry and operate for outdoor activities. With the electricity connection to automobile, this type provides customers to use in outdoor demand. As this type is relative small, it is proper for the clients who works for light-duty purpose.



 。Especially design for light-duty
     purpose

 。Easy to carry

 。Suitable for using in outdoor

 。Compatible to connect electricity
     from automobile

型號 馬力 氣缸數 使用壓力 最高壓力 空壓機轉數 排氣量 氣桶容量 呎吋(cm) 重量
MODEL HP KW Cylinder Kg/cm² psi Kg/cm² psi R.P.M ℓ/min CFM Gal. L x W x H kg
DC12V 1 0.75 1 8 115 10 145 2850 116 4.1 8 2.1 49*19*45 14
DC24V 1 0.75 1 8 115 10 145 2850 116 4.1 8 2.1 49*19*45 14



型 號 MODEL:DC12V

馬力  氣缸數
HP KW Cylinder
1 0.75 1
使用壓力 最高壓力
Kg/cm² psi Kg/cm² psi
8 115 10 145
空壓機轉數 排氣量
R.P.M ℓ/min CFM
2850 116 4.1
氣桶容量 重量
Gal. kg
8 2.1 14
呎吋(cm)
L x W x H
49*19*45

型 號 MODEL:DC24V

馬力  氣缸數
HP KW Cylinder
1 0.75 1
使用壓力 最高壓力
Kg/cm² psi Kg/cm² psi
8 115 10 145
空壓機轉數 排氣量
R.P.M ℓ/min CFM
2850 116 4.1
氣桶容量 重量
Gal. kg
8 2.1 14
呎吋(cm)
L x W x H
49*19*45
