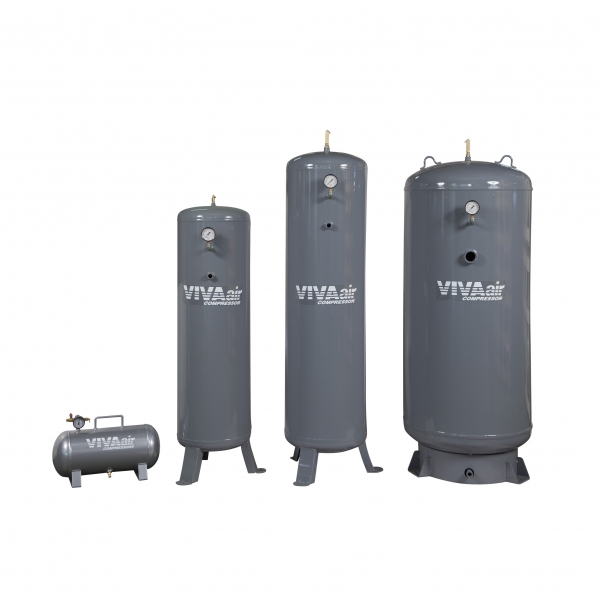

Vertical Air Tanks
MingTyan offers a range of vertical air receivers from 88 to 660 litres that are suitable for different industrial air compressed systems. The product is supplied with all necessary fittings. When applying vertical air receiver in your system, the system creates higher air consumption capacity than compressor as it works like a buffer allowing the distribution system for air temporarily.
。Unique design with twin tank
and lower height
。High efficiency
。Easy to carry
。Ideal for all applications in
accessories and pneumatic tools
| 型 號 |
桶 容 量 |
尺 吋 |
淨重 |
| MODEL |
Liter |
Gal |
cm |
kg |
| T-88 |
88 |
23 |
50*50*110 |
36 |
| T-110 |
110 |
29 |
50*50*130 |
50 |
| T-155 |
155 |
41 |
55*55*150 |
72 |
| T-240 |
240 |
64 |
65*65*155 |
118 |
| T-360 |
360 |
95 |
75*75*160 |
152 |
| T-460 |
460 |
121 |
75*75*190 |
185 |
| T-660 |
600 |
160 |
95*95*190 |
225 |
型 號 MODEL：T-88
| 桶 容 量 |
| Liter |
Gal |
| 88 |
23 |
| 尺 吋cm |
| 50*50*110 |
| 淨重 KG |
| 36 |
型 號 MODEL：T-110
| 桶 容 量 |
| Liter |
Gal |
| 110 |
29 |
| 尺 吋cm |
| 50*50*130 |
| 淨重 KG |
| 50 |
型 號 MODEL：T-155
| 桶 容 量 |
| Liter |
Gal |
| 155 |
41 |
| 尺 吋cm |
| 55*55*150 |
| 淨重 KG |
| 72 |
型 號 MODEL：T-240
| 桶 容 量 |
| Liter |
Gal |
| 240 |
64 |
| 尺 吋cm |
| 65*65*155 |
| 淨重 KG |
| 118 |
型 號 MODEL：T-360
| 桶 容 量 |
| Liter |
Gal |
| 360 |
95 |
| 尺 吋cm |
| 75*75*160 |
| 淨重 KG |
| 152 |
型 號 MODEL：T-460
| 桶 容 量 |
| Liter |
Gal |
| 460 |
121 |
| 尺 吋cm |
| 75*75*190 |
| 淨重 KG |
| 185 |
型 號 MODEL：T-660
| 桶 容 量 |
| Liter |
Gal |
| 660 |
160 |
| 尺 吋cm |
| 95*95*190 |
| 淨重 KG |
| 225 |
